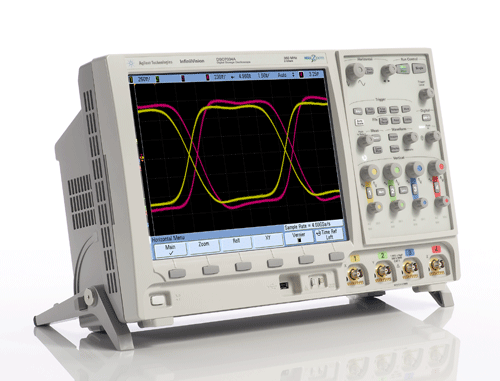

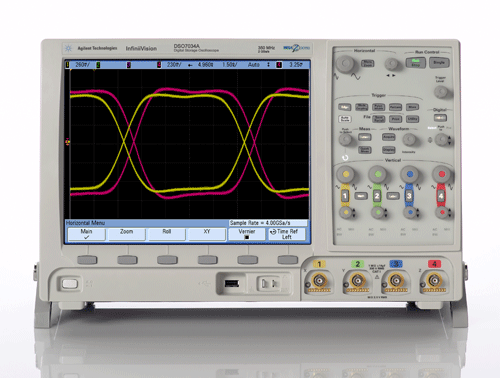

DSO
Lab scope performance
100 MHz bandwidth
4 analog channels
2 GSa/s sample rate
Standard 8 Mpts MegaZoom III deep memory
Engineered for the best signal visibility
12.1" XGA display with 256 intensity levels shows subtle signal detail
Industry's-fastest uncompromised update rate of up to 100,000 waveforms/sec displays infrequent events
Wide range of application packages
Segmented memory
PC-based offline analysis and viewing of previously acquired data
Power analysis
Serial decode including: I2C, SPI, CAN, LIN, RS-232/UART, and I2S
